JGA12-N20E Electric N20 encoder motor with metal gears
Working voltage range: 3-12V
Parameters at rated 6V
The rotational speed is 3000rpm1500rpm, 750rpm 500rpm, 300rpm, 150rpm, 100rpm, 71rpm, 60rpm ,50rpm, 39rpm,15rpm
Parameters at rated 12V
The rotational speed is 6000rpm 3000rpm,1500rpm, 1000rpm 600rpm, 300rpm, 200rpm, 140rpm, 120rpm, 100rpm , 78rpm,30rpm
Parameters at rated 3V
The rotational speed is 1500rpm 750rpm,375rpm,250rpm, 150rpm, 75rpm, 50rpm, 35rpm, 30rpm, 25rpm, 20rpm , 7rpm,
Note: Please note the voltage and no-load speed you need when taking the picture for us to ship. Thank you! as
Without any notes or contact, we will randomly ship the goods
Product picture :

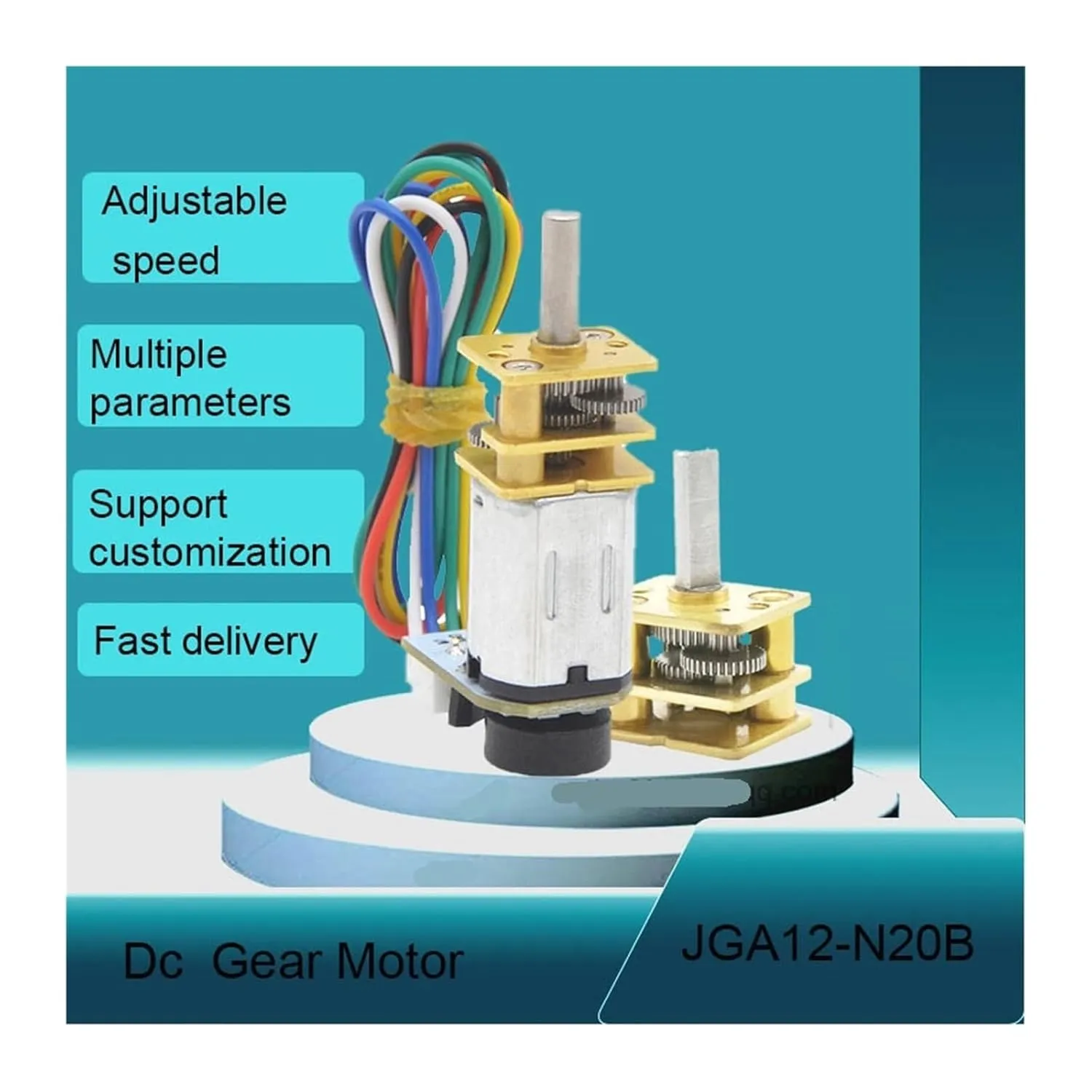

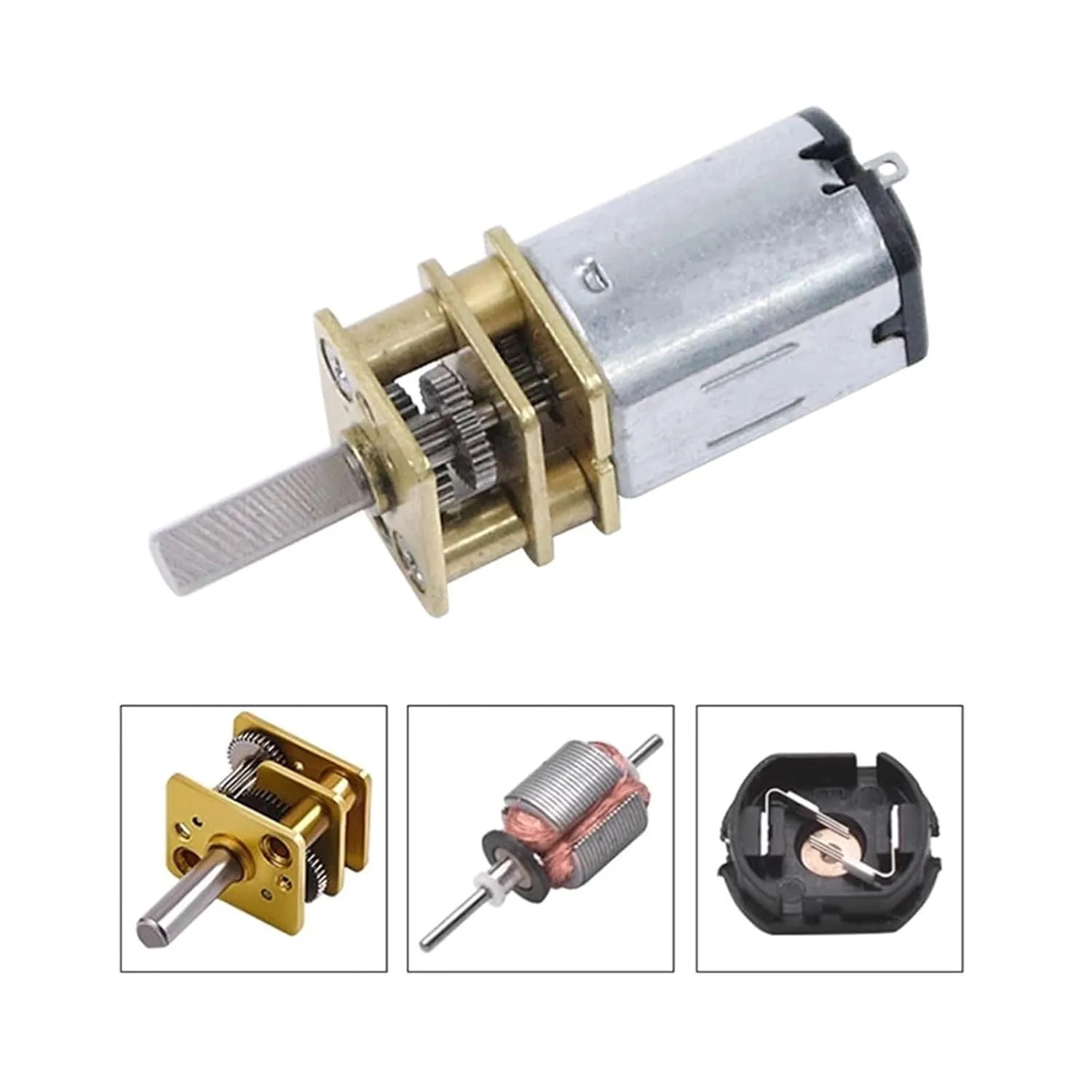

N20 Micro dc gear motor with metal gearbox
N20 reduction motor with encoder parameter:
The 6v n20 dc gear motor with 12v volt,
then the current and torque is double times to 6v motor
The 6v n20 dc reduction motor with 3v volt
then the current is hlaf of 6v N20 dc gear motor

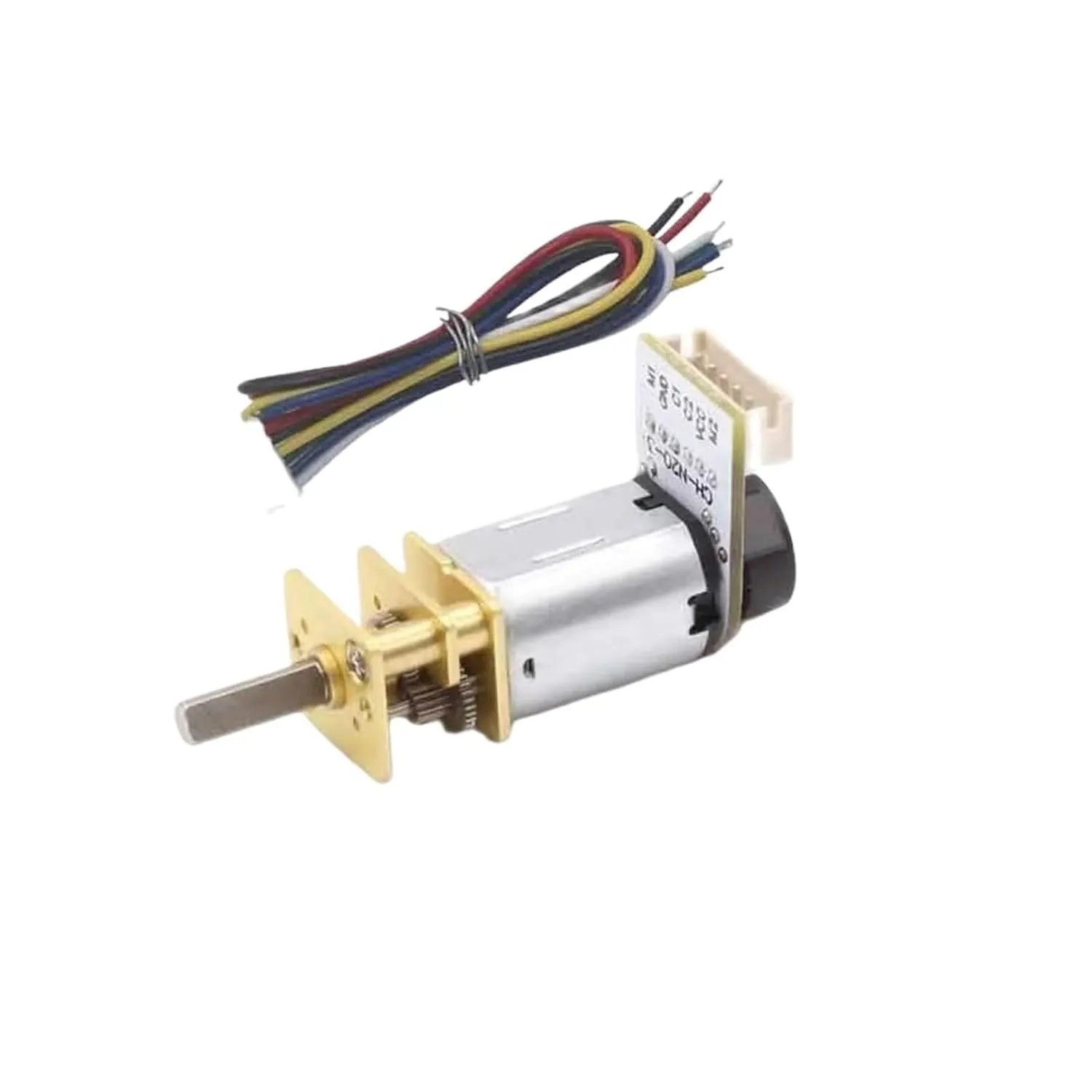

N20 encoder motor with gearbox

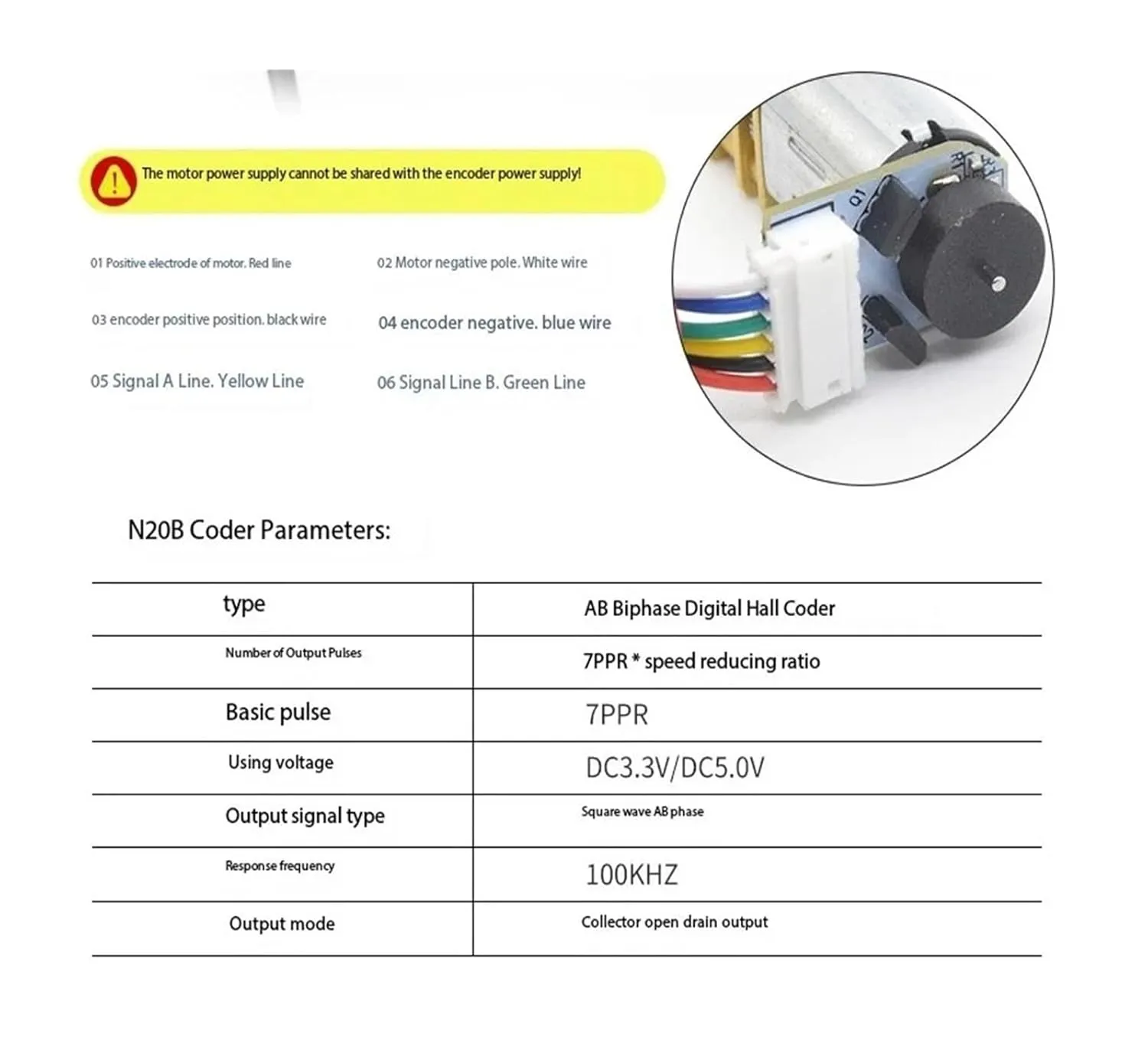

N20 code information:
1. M2 : FOR MOTOR
2, VCC: FOR ENCODER (5V/3.3V)
3 , C2 : FOR ENCODER A PHASE
4, C1: FOR ENCODER B OHASE
5 GND: FOR ENCODER -
6 M1: FOR MOTOR -
Output signal: square wave AB phase
Encoder voltage: 5V/3.3V
Working temperature range: -40 ~120C.
Basic pulse count: (allocation rate): 7ppr
N20 gear motor application:
How to select dc gear motor:
Precautions for motor use:
Precautions for motor use:
1. Make sure the voltage of the motor is correct before use. If it is a DC motor, also confirm whether the power supply current is sufficient
2. It cannot be used with overload. The reasons for overload are mainly divided into two parts, the torque and the force of the shaft. The load torque cannot exceed the rated torque of the motor, and the force of the shaft cannot exceed the axial and radial allowable forces of the shaft. After the load is
